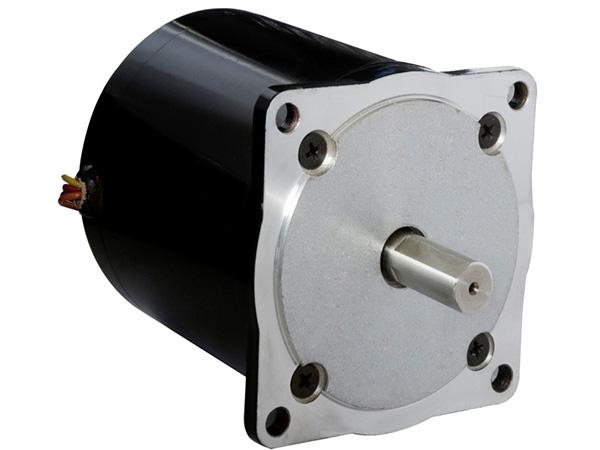

Motor Features
1. Standard NEMA 34 frame size
2. Step angle 1.8°with a step angle accuracy of -/+5%
3. Black powder-painting housing and rugged Aluminum front endbell
4. Satisfactory Torque VS Speed curve
5. Custom winding, extended shaft and mounting configurations are available
Applications
1. Milling&drilling CNC machines
2. Computerized knitting machines
3. Wood processing machinery
4. Scrap choppers
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 86BYGX450A-003 | 5.8 | ≤1.6 | 1.8 | 3.6 | 27 | 1.76 | 4 | 0.8 | 0.64 |
| 86BYGX450A-008 | 2.35 | ≤2.5 | 1.8 | 0.94 | 7 | 1.96 | 4 | 0.8 | 0.64 |
| 86BYGX450A-014 | 1.4 | ≤4.5 | 1.8 | 0.31 | 1.3 | 1.6 | 8 | 0.8 | 0.64 |
| 86BYGX450B-005 | 3.6 | ≤3 | 1.8 | 1.2 | 11 | 4 | 4 | 1.5 | 1.3 |
| 86BYGX450B-008 | 3 | ≤4 | 1.8 | 0.75 | 3.5 | 2.8 | 8 | 1.5 | 1.3 |
| 86BYGX450B-025 | 2.8 | ≤4 | 1.8 | 0.7 | 9.8 | 4.1 | 4 | 1.5 | 1.3 |
| 86BYGX450C-002 | 4.2 | ≤3.5 | 1.8 | 1.2 | 5.2 | 3.6 | 8 | 2.5 | 1.9 |
| 86BYGX450C-003 | 4 | ≤4 | 1.8 | 1 | 6 | 4 | 8 | 2.5 | 1.9 |
| 86BYGH450A-001-XX | 4 | ≤2 | 1.8 | 2 | 6 | 2.3 | 6 | 0.85 | 0.66 |
| 86BYGH450B-001 | 6.27 | ≤1.65 | 1.8 | 3.8 | 24 | 5.2 | 4 | 1.3 | 1.2 |
| 86BYGH450B-002-XX | 3.9 | ≤3 | 1.8 | 1.3 | 7.5 | 5.1 | 4 | 1.3 | 1.2 |
| 86BYGH450B-003-XX | 3.2 | ≤4 | 1.8 | 0.8 | 5.2 | 5.4 | 4 | 1.3 | 1.2 |
| 86BYGH450C-001-XX | 6 | ≤4 | 1.8 | 1.5 | 6 | 7.6 | 6 | 2.3 | 1.8 |
