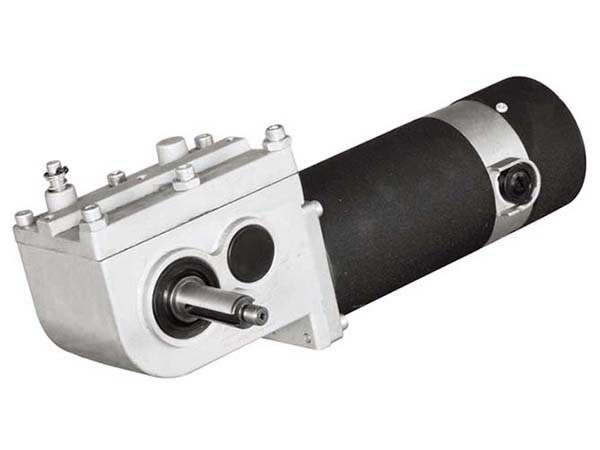

Motor Features
1. The DC geared motor has a 2 stage gear transmissions to produce a higher output torque.
2. Dedicated workmanship ensures a consistent electric motor quality.
3. All of our products undergo a full-range inspection to ensure the geared motor's optimal performance before delivery.
4. Widely applied to golf carts or some other battery-powered vehicles.
Applications
1. Wheel Chairs
2. Golf carts
3. Pick and place
4. Materials handling
5. Small machinery
| Gearbox Housing | Ruggedised die-cast Aluminium | |||
| Worm Gear Material | Bronze,steel or glass-filled plastic | |||
| Lubrication | Grease lubricated & sealed | |||
| Gearbox Output Bearing Type | High quality ball bearings | |||
| Insulation Class | F (contact us for class B) | |||
| Brush Type | Integral or removable | |||
| Ambient Operating Temperature | -20℃ to +40℃ | |||
| Part Number | Voltage | Gear Ratio | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| VDC | / | RPM | Nm | A | RPM | W | mm | |
| ZJD8032A | 24 | 32:1 | 175 | 15 | 20 | 141 | 600 | 203 |
| ZJD8032B | 24 | 32:1 | 160 | 15 | 18 | 131 | 900 | 203 |
| ZJD8032C | 24 | 32:1 | 105 | 12.5 | 11 | 84 | 600 | 203 |
